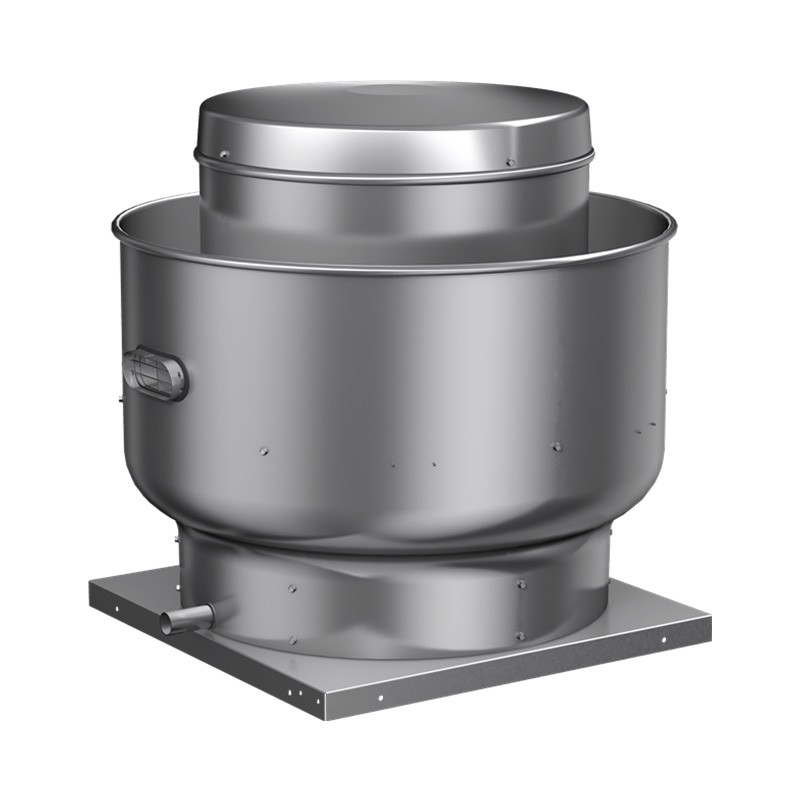

Greenheck CUBE-120-4119GQD-DR4 1153-1759 CFM Centrifugal Upblast Exhaust Fan

Centrifugal wheel provides high-efficiency and minimal sound
One-piece aluminum windband with rolled bead provides extra rigidity
Cooling fins located on top of fan wheel draw outside air through a large breather tube directly into the motor compartment extending motor life
Windband is continually welded to the curb cap and drain trough for leakproof construction
Machine cast pulleys are adjustable for final system balancing
Permanent embossed aluminum nameplate for exact model and serial number identification

SKU #: CUBE-120-4119GQD-DR4

List Price: $ 2,299.95
In Stock

100% secure payments

Your Offer is sent.

Your Offer is accepted, please check your inbox.

  • Use dot instead of comma
  •     *Required Fields


Greenheck CUBE-120-4119GQD-DR4 1153-1759 CFM Centrifugal Upblast Exhaust Fan

Product Specifications:
Brand: Greenheck
Part Number: CUBE-120-4119GQD-DR4
CFM Range: 1153-1759
FRPM Range: 1200-1490
Application: Exhaust General and Clean Air, Exhaust Grease-Laden Air
Housing Material: Spun Aluminum
Drive Type: Belt Drive
Impeller Type: Centrifugal Wheel
Impeller Material: Aluminum
Includes: Assembled drive package, Disconnect switch
Certifications: AMCA Sound & Air, UL/cUL 705 Listed, Supplement SC, "Power Ventilators for Restaurant Exh. Appliances"
Drive Package Description: Motor and drives assembled
Required Accessory: Roof curb for new roof installations
Motor Insulation: B
Motor Phase: 1
Service Factor: 1.35
Voltage: 115
HP: 1/4
Hertz: 60
Motor Enclosure: Open Drip Proof
RPM: 1800
Thermal Protection: Auto
Nominal Efficiency: 75
NEMA Frame Size: 48
Warranty: 1 Year
